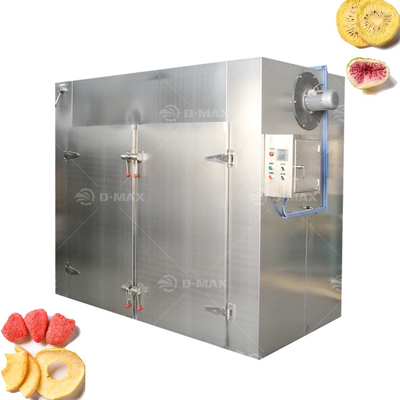

Hot Air Circulating Drying Oven for Uniform Drying Dehydration of Fish Fruit Vegetable
Product Details:
| Place of Origin: | China |
| Brand Name: | Domax |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $2,390.00/sets 1-4 sets |
|
Detail Information |
|||
| Applicable Industries: | Food & Beverage Factory, Farms, Restaurant | Showroom Location: | None |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2024 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Motor | Condition: | New |
| Power: | 0.45kw | Weight: | 820 KG |
| Dimension(L*W*H): | 1600*1200*1980mm | Year: | 2024 |
| Warranty: | 1 Year | Product Name: | Food Dryer Machine |
| Application: | Vegetable Fruit | Function: | Drying Dehydration |
| Material: | SUS 304 | Feature: | High Efficiency Multi-functional |
| Capacity: | 60kg/batch | Final Product: | Dried Fruit Products |
| Keywords: | Fruit Dehydrator Drying Machine | Key Words: | Fruit Drier |
| Suit For: | Agricultural Products | ||
Product Description
Factory Direct Fish Fruit Vegetable Dryer Processing Equipment Strawberry and Mango Hot Air Circulating Drying Oven
Product Description
This hot air drying machine uses steam or electricity as a heat source, heats it through a heat exchanger, and forces the air to be circulated by a fan. The laminar flow of hot air transfers heat to the materials through the drying process and takes away the moisture evaporated from the materials. According to the different requirements of the materials and the different states of the drying process, the ratio of air discharge volume and circulation volume can be adjusted to achieve the purpose of dual improvement of drying rate and heat utilization rate. There are adjustable air distribution devices on the left and right sides of the oven. Adjust the angle of the air distribution blades to make the temperature at the top, bottom, front and rear points in the oven consistent.
Application
It is a general-purpose drying machine with a wide application range. It is widely used for heating, curing, drying and dehydrating of materials and products in such industries as medicine, chemical industry, food, light industry, heavy industry, etc., for example: pharmaceutical materials, crude drugs, sliced herbal medicines, powders, granules, medicinal granules, small and large honeyed pill packaging bottles, pigments, dyes, dehydrated vegetables, dried fruits, sausages, plastic resins, electrical components, baking finishes, etc.
Specification
Model | Capacity | Power | Cooling area | Air volume | Cart | trays | Size |
CT-C-0 | 60kg/batch | 0.45kw | 5㎡ | 3450 m³/h | 1 | 24pcs | 1600*1200*1980mm |
CT-C-I | 120kg/batch | 0.45kw | 20㎡ | 3450m³/h | 2 | 48pcs | 2600*1200*1980mm |
CT-C-II | 240kg/batch | 0.45*2kw | 40㎡ | 6900 m³/h | 4 | 96pcs | 2600*2200*1980mm |
CT-C-III | 360kg/batch | 0.45*3kw | 80㎡ | 10350m³/h | 6 | 144pcs | 3600*2200*1900mm |
CT-C-IV | 480kg/batch | 0.45*4kw | 100㎡ | 13800 m³/h | 8 | 192pcs | 4600*2200*1980mm |
Advantages
1: Most of the hot air circulates in the box, with high thermal efficiency and energy saving. 2: Utilize the effect of forced ventilation, there is an adjustable air distribution plate in the box, and the material is dried evenly 3: The heat source can be steam, hot water, and electricity. 4: The whole machine has low noise and balanced operation. Automatic temperature control, easy installation and maintenance. 5: It has a wide range of applications and can dry various materials. It is a general drying equipment.
