Voltage 220V/380V Automatic Shoes Boot Sole and Upper Washer for Food Processing Plants
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Domax |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $3,980.00/sets 1-4 sets |
| Packaging Details: | Wrapped with plastic film and packed in standard export wooden boxes |
| Supply Ability: | 20 Set/Sets per Month |
|
Detail Information |
|||
| Machine Type: | Other | Applicable Industries: | Food & Beverage Factory, Farms |
|---|---|---|---|
| Weight (KG): | 150 | Showroom Location: | None |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2024 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Motor | Condition: | New |
| Fuel: | Electric | Use: | Scrubbing And Absorbing Water |
| Cleaning Process: | Cold Water Cleaning, Brushing + Water Spray | Cleaning Type: | Clean-In-Place (CIP) |
| Power: | 200W+45W | Dimension(L*W*H): | 1500*760*960mm |
| Warranty: | 1 Year | Product Name: | Boot Washing Machine |
| Key Word: | Mine Boot Washing Machine | Application: | Food Industry |
| Function: | Dirt Cleaning | Feature: | Easy Operation High Efficiency |
| Clean Way: | Auto Cleaning System | Voltage: | 220V/380V(customizable) |
| Cleaning Width: | 760*480mm | Squeegee Width: | 430*550mm |
Product Description
Automatic Intelligent shoes boot sole and upper washer cleaning disinfection machine for food processing plants
Product Description

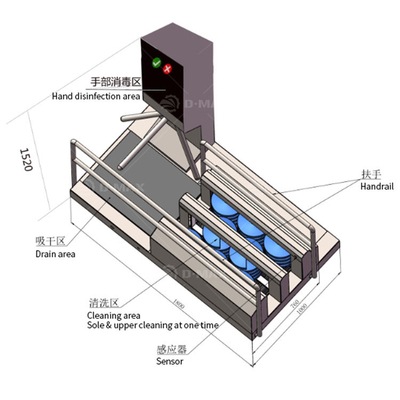

This boot cleaning machine consist of two parts, one part is for cleaning the side of boot, the other part is for cleaning the bottom of boot.The main principle of the cleaning is use the brushes and water to remove the impurities, germs, microorganism, prevent infection.It can work with soap lye, disinfectant, to install it at the access of food producing workshop.
Advantages
1.The facade hair roller adopts spiral structure, layout USES the S type. Clean without dead zone more thoroughly; 2.Sink present the large gradient ramp, sink top mounted flush structure, strong water from top to bottom by one word at the bottom of the self-priming pump discharge. Blowdown more efficient more thoroughly; 3.Use overhead type atomized spray disinfectant, audience area is larger, more efficient; 4.USES the programmable logic controller, more powerful and reliable monitoring program running (can customize according to customer's requirement); 5.Visualization touchscreen interface, multilingual regional gm. More convenient set as well as the information view, the late maintenance more convenient; 6.Using photoelectric switch, reliable long life (according to customer requirements); 7.The main drive adopts electronic switch, to avoid the problem of mechanical limited life; 8.The rotary bearing NSK brand, using imported reliable performance;9. Static fumigation can tolerate.
Specification
Model | DM-S01 |
Cleaning type | Wet water spary cleaning |
Function | Boot sides and sole washing and disinfection |
Touch control display screen | Can set clean&self-clean time, auto detection fault remind, with 6 languages |
Cleaning area | 760*480mm |
Drying area | 430*550mm |
Absorbent pad material | PVA/PU sponge |
Water pump power | Sewage pump 120w Spray pump 20w |
Tank capacity | 30L |
Motor power | 200W+45W |
Voltage | 220v / 380v(Customized) |
Machine size | 1500*760*960mm |
Maximum load bearing | 400kg |
Weight | 150kg |
Material | 304 stainless steel material |
Machine Pictures Display
