3/4 Sides Seal Commercial Honey Sachet Liquid Packaging Machine for Curry Paste Stick
Product Details:
| Place of Origin: | China |
| Brand Name: | Domax |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $2,599.00/sets 1-4 sets |
|
Detail Information |
|||
| Production Capacity: | 25bag/min, 60bag/min | Weight (KG): | 280 |
|---|---|---|---|
| Function: | FILLING, Wrapping, Sealing | Application: | Food, Chemical |
| Packaging Type: | Bags, Film | Packaging Material: | Plastic |
| Automatic Grade: | Automatic | Driven Type: | Electric |
| Voltage: | 380V 50Hz,3PH (Customized) | Dimension(L*W*H): | 1150*700*1750mm |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Core Components: | Motor, PLC, Gear | Usage: | Filling Packing Machine |
| Main Function: | Weighing Forming Filling Sealing | Keyword: | Automatic Snack Food Sugar Packing |
| Machine Type: | Automatic Bag Forming Filling Sealing Machine | Packing Speed: | 20-50 Bags/min |
| Feature: | Easy Opperation | Automaticity: | Fully Auto |
| Suitable For: | Liquid Viscous Products | Bag Type: | 3/4 Sides Seal/Back Seal |
| Material: | Stainless Steel 304 | Type: | Multi-Function Packaging Machine |
| Applicable Industries: | Food & Beverage Factory, Restaurant, Food Shop, Food & Beverage Shops | Showroom Location: | None |
| Condition: | New | Warranty Of Core Components: | 1 Year |
Product Description
Commercial use ketchup chilli sauce curry paste stick honey sachet liquid packaging machine
Introduction of the liquid packaging machine
This machine adopts the current international advanced microcomputer chip control, 5.-inch large-screen LCD display, simple and easy-to-use operation interface, with photoelectric eye tracking and detection, accurate sealing and cutting in two packages, optional coding machine, continuous package, easy Tear the mouth, fling the knife, punch the fillet, vent or inflate the device.
Application of the liquid packaging machine
Automatic packaging of various liquid creams such as shampoo, cream, ketchup, king mortar, honey, chili oil, lotion, oral liquid and other materials.
Features of the liquid packaging machine
1.High sensitive fiber optic photo sensor/photo eye electricity sensor can automatically trace color mark accurately; 2.Stepping motor driven pully roller for heat seal pulling system; 3.PLC control system combined with touch screen, can easily set and change the packing parameters.Daily production output and self-diagnostic machine error can be viewed directly from the screen; 4.PID temperature controller monitors heat sealing temperature within ±1°C.
Product Paramenters
Model | DM-320 |
Bag style | Back seal (Customized) |
Packing speed | 24-60 bag/min |
Bag length | 30-180mm |
Bag width | 25-145 mm（Need to replace the Former） |
Film width | 70-310mm |
Filling range | <40ml or 20-100ml |
Air pressure | 0.6－0.7MP |
Power Supply | 380V/220V/1.8Kw |
Net weight | 280kg |
Machine dimensions | 1150*700*1750mm |
Package size | 1100*750*1820mm |

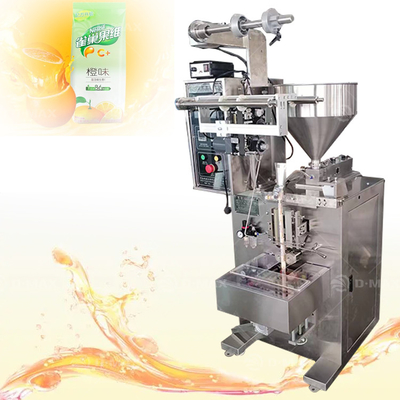

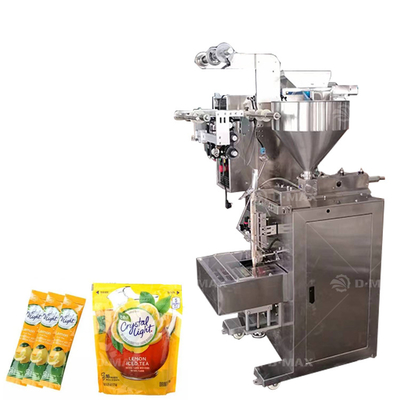

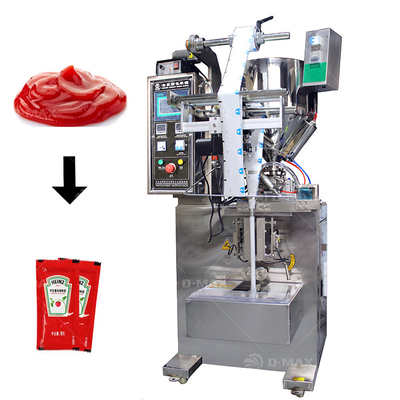

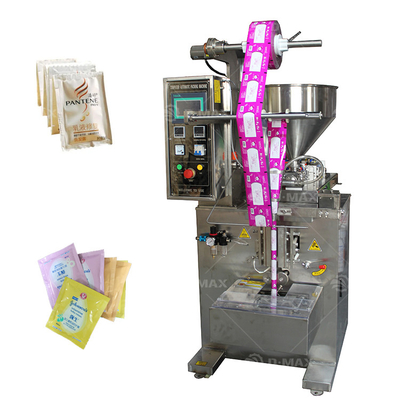

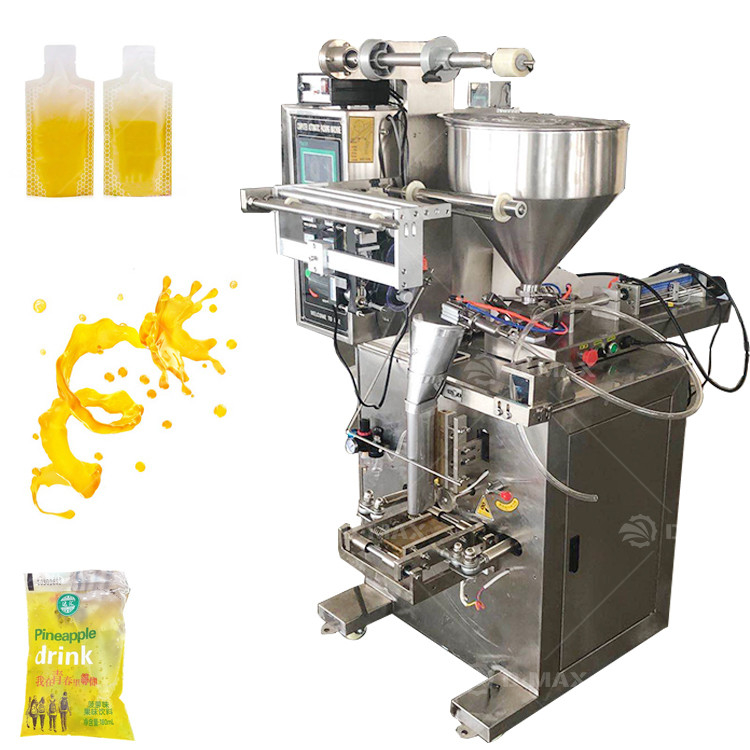

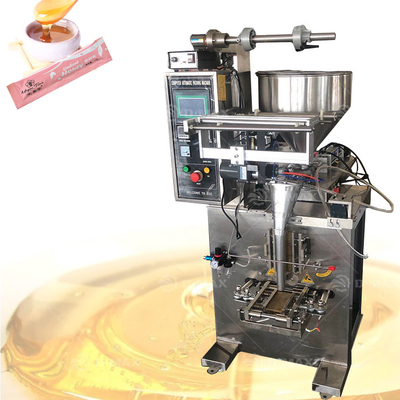

Machine Pictures Display
