1120*500*960mm Double Chamber Fish Airtight Packaging Machine for Meat Vacuum Packing
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Domax |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $1,280.00/sets 1-4 sets |
|
Detail Information |
|||
| Type: | Vacuum Packing Machine | Applicable Industries: | Food & Beverage Factory, Farms, Restaurant, Home Use, Food Shop, Food & Beverage Shops |
|---|---|---|---|
| Showroom Location: | None | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Condition: | New |
| Application: | Food, Commodity | Packaging Type: | Bags, Film, Pouch |
| Packaging Material: | Plastic | Automatic Grade: | Automatic |
| Driven Type: | Electric | Voltage: | 220V/380V(customized) |
| Dimension(L*W*H): | 1120*500*960mm | Weight: | 131 KG |
| Warranty: | 1 Year | Key Selling Points: | Easy To Operate |
| Product Name: | Food Vacuum Sealer | Usage: | Food Industry Vacuum Packaging |
| Function: | Preserved Food | Keyword: | Food Vacum Packing Sealing Machine |
| Material: | SUS304 | Advantage: | High Efficiency Vaccum Sealer Vacuum Packing |
| Feature: | Adjustable | After Warranty Service: | Video Technical Support\Online Support\ |
| Power: | 0.9KW | Suitable For: | Widly Used |
Product Description
Hot Sale Fish Airtight Packaging Machine Vacuum Packer Double Chamber Meat Vacuum Packing Machine Food Vacuum Sealer Machine
Introduction of Vacuum Packing Machine
Vacuum packing machine is used in vacuum packaging for the food , pharmaceutical, aquatic, chemical and electronic industries. It can prevent the products from oxidization and mildew, as well as corrosion and moisture, keeping the quality and freshness of the product over a prolonged storage time.
Application
Specification
ITEM | MODEL | ||||||||
DZ-400/2SB | DZ-500/2SB | DZ-600/2SB | DZ-700/2SB | DZ-800/2SB | |||||
Voltage | 220V/380V(Customized) | ||||||||
Pump motor power | 0.9kw | 1.8kw | 2.25kw | 3kw | 3kw | ||||
Sealing power | 0.6kw | 1.2kw | 1.5kw | 2kw | 2kw | ||||
Ultimate Vacuum Pressure | 1Kpa | ||||||||
Number of sealing strips | 2*2 (Total 4 pieces) | ||||||||
Sealing strip size | 400*10mm | 500*10mm | 600*10mm | 700*10mm | 800*10mm | ||||
Distance between sealing bars | 300mm | 400mm | 400mm | 500mm | 570mm | ||||
Vacuum pump rate | 20 m³/h | 20*2 m³/h | 20*3 m³/h | 100*1 m³/h | 100*1 m³/h | ||||
Chamber dimension | 500*430*105mm | 565*525*105mm | 665*525*105mm | 765*626*105mm | 860*700*160mm | ||||
Machine dimension | 1120*500*960mm | 1260*605*965mm | 1460*605*965mm | 1660*705*965mm | 1940*920*1000mm | ||||
Net weight | 131kg | 185kg | 221kg | 260kg | 380kg | ||||
Material | 304 Stainless steel | ||||||||
Features of Vacuum Packing Machine
1. Food grade 304SS for machine body 2. Big vacuum chamber and long seal. 3. IP65 grade, and flat work table. User can clean it easily. 4. Function: Vacuum+seal. It prolong store life of your products. 5. Accept customized requirement for deep vacuum chamber, automatic swing lid, control panel, vacuum pump, gas filling, full 304SS etc.

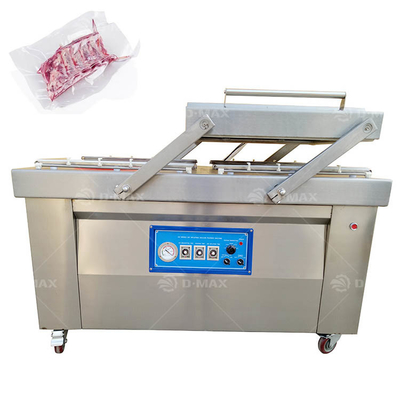

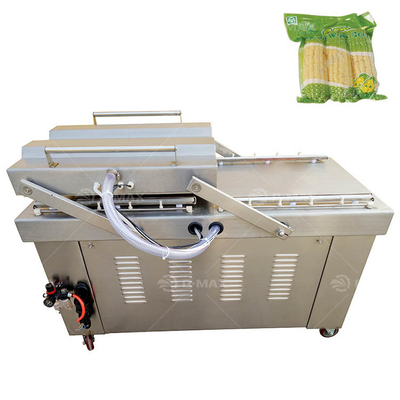

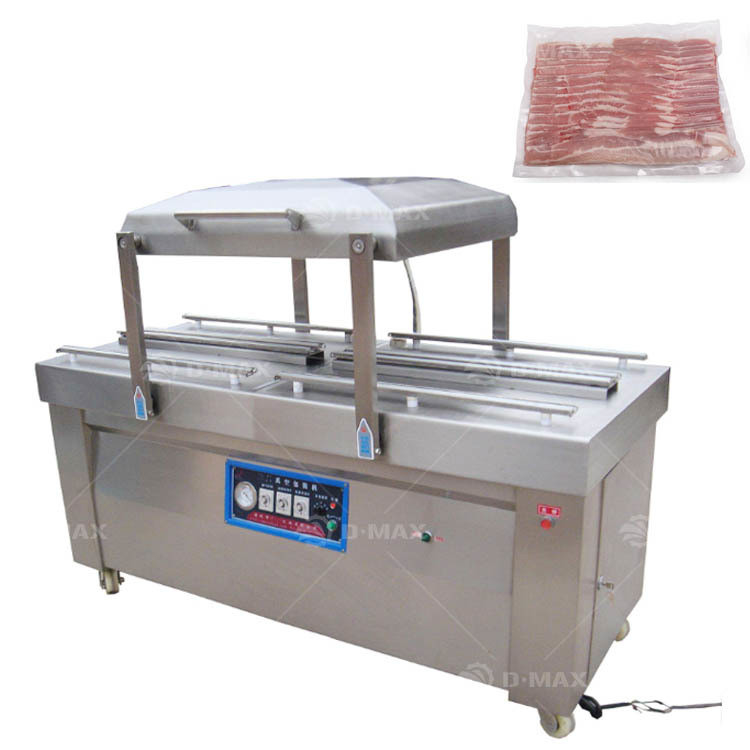

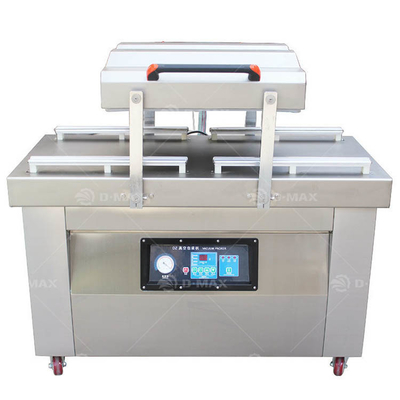

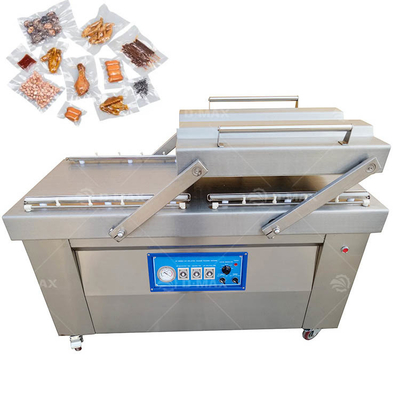

Machine Pictures Display
How to Operate the vacuum packing machine
1.After checking before starting, turn on the power. 2.Set the exhaust time, heat seal time meter heat seal temperature gear (low, medium, high) 3.Put the packed articles into the vacuum chamber, lift the pressure rod membrane and press it on the bag mouth. 4.Press down the vacuum cap. The packing procedure starts with air exhaustion and then goes to heat sealing until the vacuum cap pops up automatically. The packing process ends.
