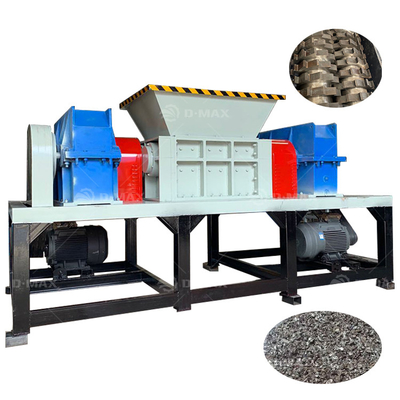

Crushing Recycling Metals Double Shaft Waste Shredding Machine for Scrap Iron Plastic
Product Details:
| Place of Origin: | China |
| Brand Name: | Domax |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $3,999.00/sets 1-4 sets |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | Hot Product 2023 |
| Warranty Of Core Components: | 1 Year | Core Components: | Gearbox, Motor |
| Warranty: | 1 Year | Material / Metal Processed: | Stainless Steel, Brass / Copper, ALLOY, Carbon Steel, Aluminum |
| Power (kW): | 15 | Weight (KG): | 1200 |
| Key Selling Points: | High Productivity | Applicable Industries: | Building Material Shops, Recycling Factory |
| Showroom Location: | None | Application: | Scrap Cable Recycling |
| Function: | Recycle Copper Wires | Raw Material: | Used Metal Material |
| Usage: | Crushing Recycling Metals | Keyword: | Metal Shredder Crusher |
| Advantage: | High Efficiency Low Energy Consumption | Type: | Environment-friendly |
| Recycling Material: | Scrap Iron Aluminum Copper Plastic | Suitable Material: | Scrap Raw Materials |
| Suit For: | Scrap Used Metal | ||
Product Description
Double Shaft Waste Iron Plastic Wool Paper Shredding Machine Waste Car Tyre Crushing Machine
Introductions of the scrap metal tearing machine
1. Through the relative rotation of the two sets of cutter shafts, the mutual shearing between the movable knife blade, the cutter head, and the distance sleeve, the material is cut and crushed. 2. The discharging control of the double-shaft shredder adopts a mesh design. The width and length of the discharging material depend on the width of the knife and the distance between the knife heads. 3. The two sets of cutter shafts rotate at different speeds, so that the material is sheared and crushed at the same time, improving the crushing efficiency.
Application of the scrap metal tearing machine
This machine is used for scrap car, bicycle rack, motorcycle rack, color steel tile, large gasoline drum, metal press block, steel strand, wire and cable, scrap household appliances, metal thin material, paint drum and other materials.
Advantages of the scrap metal tearing machine
1.Overall structure design, durable; 2.Can be customized cutter, long service life; 3.Alloy cutter, high wear resistance, toughness; 4.Low speed, large torque, high output, low noise, low operation and maintenance costs; 5.Specially designed hopper to avoid the direct impact of materials on the blade, hydraulic feeder can be configured to assist the feeding; 6.Separate control of electric box, PLC control; 7.The advanced sealing system prevents the material from leaking out of the box and ensures the service life of the bearing; 8.Torque monitoring, overload protection, automatic turnover and other multiple equipment operation guarantee.
Product Paramenters
Model | Crushing chamber size | Output | Power | Outline Size | Weight |
DM-PS400 | 400*430mm | 0.2-0.5 t/h | 7.5*2 kw | 2.1*1*1.5m | 1200kg |
DM-PS600 | 600*430mm | 0.8-1.5 t/h | 15*2 kw | 2.6*1.2*1.5m | 1800kg |
DM-PS800 | 800*630mm | 1.5-3 t/h | 22*2 kw | 3.4*1.7*1.8m | 3500kg |
DM-PS1000 | 1000*760mm | 2.5-4 t/h | 30*2 kw | 4*1.9*1.9m | 5500kg |
DM-PS1200 | 1200*760mm | 4-5 t/h | 37*2 kw | 4.2*1.9*2.1m | 8500kg |
DM-PS1400 | 1400*900mm | 5-6.5 t/h | 45*2 kw | 4.5*2.1*2.5m | 11500kg |
DM-PS1600 | 1600*1100mm | 8-50 t/h | 75*2 kw | 5.3*2.3*3.2m | 15000kg |
DM-PS1800 | 1800*1200mm | 10-60 t/h | 90*2 kw | 5.8*2.3*3.2m | 22000kg |
DM-PS2000 | 2000*1500mm | 15-80 t/h | 132*2 kw | 6.3*2.5*3.5m | 35000kg |

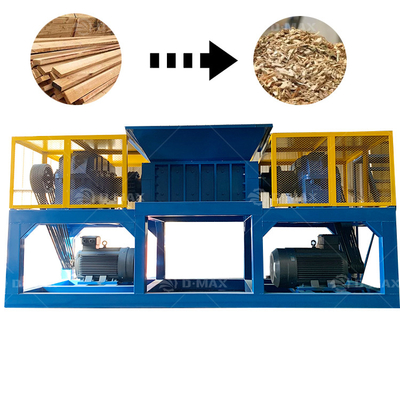

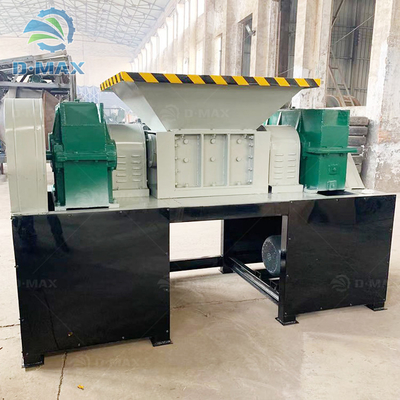

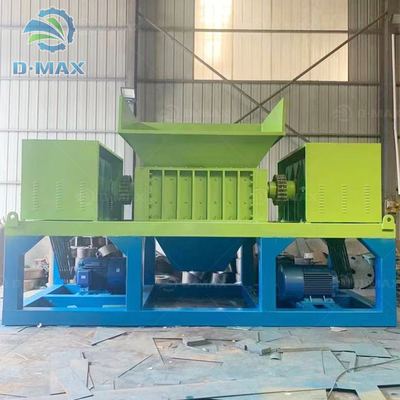

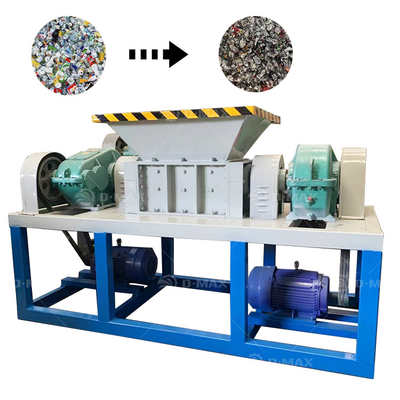

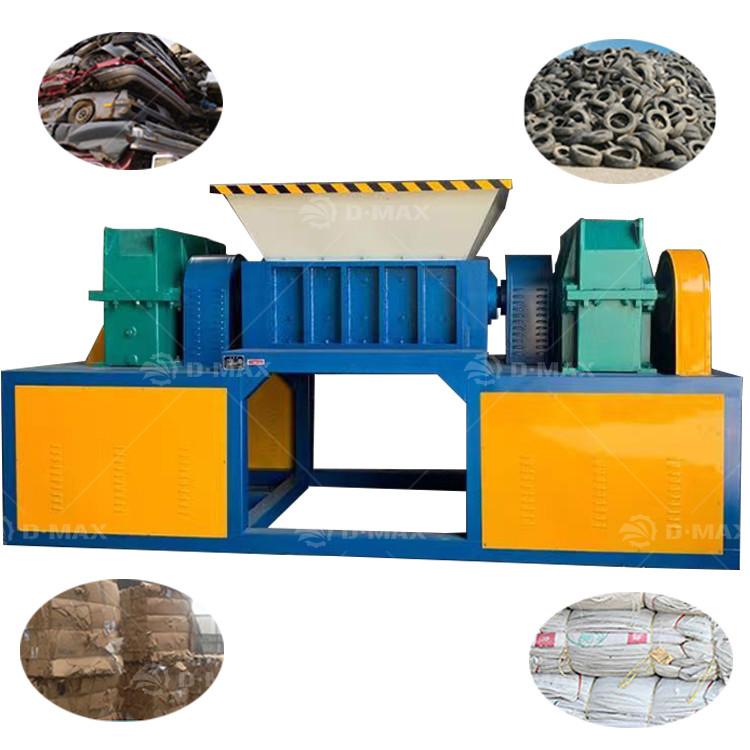

Machine Pictures Display
