Product Details:

Place of Origin: Henan, China
Brand Name: DOMAX

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $2,100.00/sets 1-4 sets
Get Best Price Contact Now

Detail Information
Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Farms, Home Use, Food & Beverage Shops, Other Showroom Location: None
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: Ordinary Product Warranty Of Core Components: 1 Year
Core Components: Motor, Gear Condition: New
Voltage: 220V/380V/Customized Power: 1.5KW
Weight: 350 KG Dimension(L*W*H): 1250*1000*1150mm
Warranty: 1 Year Application: Date Palm
Function: Seeds Removing Type: Automatic
Advantage: Easy Operation High Efficiency Keywords: Pitting
Material: 304 Stainless Steel Capacity: 300kg/h
Suitable For: Dates, Olive, Cherry Related Machine: Sorting Machine
Feature: Simple Operation

Product Description

Red Plum Date Jujube Pitting Machine Fresh Olives Pitting Machine Cherry Pitting Core Remove Machine
Product Description
300kg/h Capacity Red Plum Date Jujube Pitting Machine for Agricultural Production 0
Introduction of pitting machine
The jujube pitting machine is a multi-functional machine, suitable for pitting small fruits such as date palm, jujube, cherry, gray jujube, olive, hawthorn, green plum and so on.jujube, The fruit diameters that can be processed range from 15-45 mm, the pitting efficiency is very high, and the yield can reach 150-250 kg/h. The date palm deseed machine is mainly composed of a roulette (wheel), a silo, a brush, a punching needle, a material outlet, a seed outlet, and a body.
Final Product Pictures

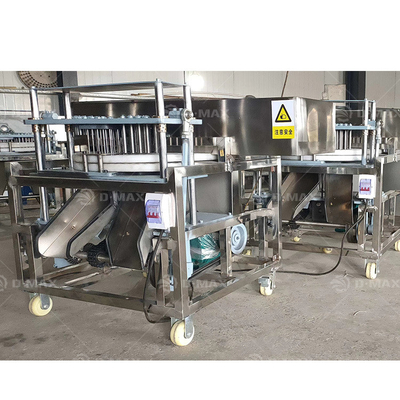

300kg/h Capacity Red Plum Date Jujube Pitting Machine for Agricultural Production 1

Working principle of pitting machine

When the machine is working, first of all, the materials need to be poured into the feed bin. The brush inside the feed bin will continuously push the materials into the holes on the roulette. The wheel rotates continuously. When it is rotated to the nuclear removal system, the needle is pressed from a high place and pressed into the inside of the fruit to pry the core out. There is a baffle at the bottom of the core-removing part, and a small hole is formed in the baffle, and the core can be dropped out of the small hole and then discharged from the seed outlet. The flesh rotates following the wheel and is discharged from the discharge port. A tray can be placed in each of the seed outlet and the discharge port for collection. The whole machine is very convenient to use, and the working efficiency is 8-10 times of manual.

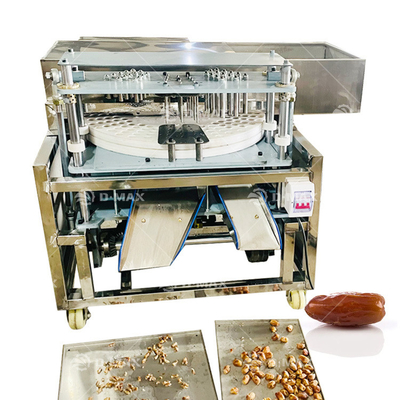

300kg/h Capacity Red Plum Date Jujube Pitting Machine for Agricultural Production 2
300kg/h Capacity Red Plum Date Jujube Pitting Machine for Agricultural Production 3
300kg/h Capacity Red Plum Date Jujube Pitting Machine for Agricultural Production 4

Features of pitting machine

1.It has an automatic feeding function. Part of the labor can be omitted, and the brush can replace the labor. 2.A wide range of applications. It can be used to complete the enucleation work of hawthorn, olive, jujube, bayberry, date palm, and other fruit. 3.Large output per hour. It can handle 150-250 kg/h. 4.Support customization. Machines can be made according to customer requirements, such as high-quality 304 stainless steel machines, outsourced 304 stainless steel machines, and carbon steel machines. 5.Different molds can be made to handle different sizes of fruit. 6.The whole machine runs smoothly and the operation is simple. An employee can operate 3-4 machines at the same time.
Specification
Model
DSQH-100
DSQH-200
Motor power
1.5kw
1.5kw
Capacity
150kg/h
250kg/h
Voltage
220V/380V/Customized
220V/380V/Customized
Dimension
1200*1000*1000mm
1200*1100*1300
Weight
260kg
350kg
Function
Can finish pitting and cutting one side at the same time

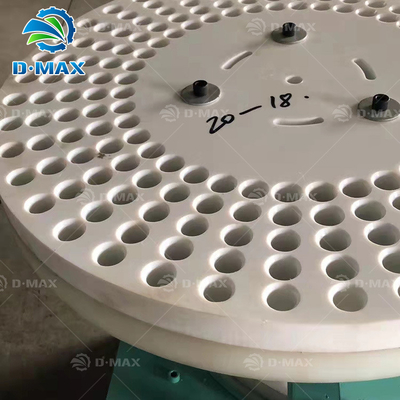

Note: Holes of the roulette is customized 14-16 16-18 18-20 20-22 22-24 24-26mm ect depends on customer's needs
Machine picture display

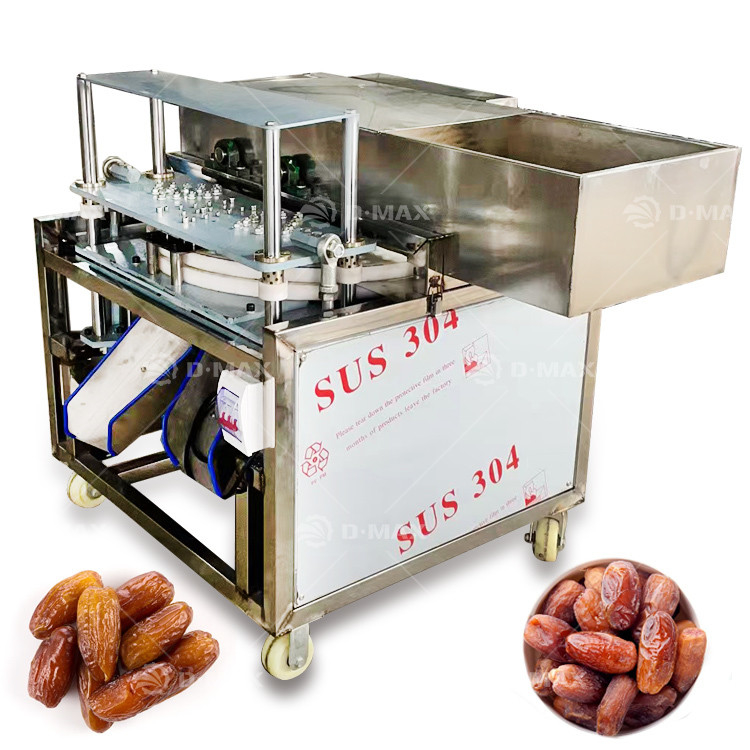

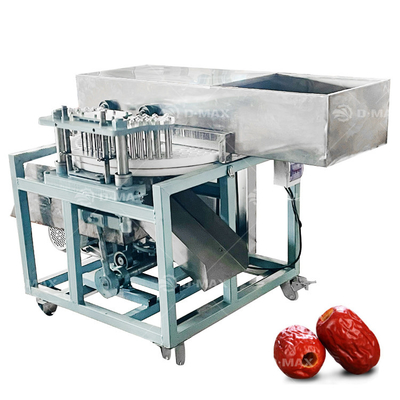

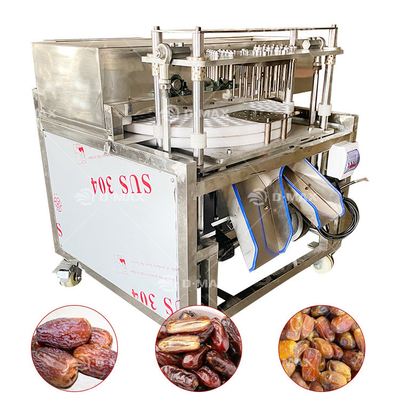

300kg/h Capacity Red Plum Date Jujube Pitting Machine for Agricultural Production 5
Packing & Delivery
300kg/h Capacity Red Plum Date Jujube Pitting Machine for Agricultural Production 6
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
